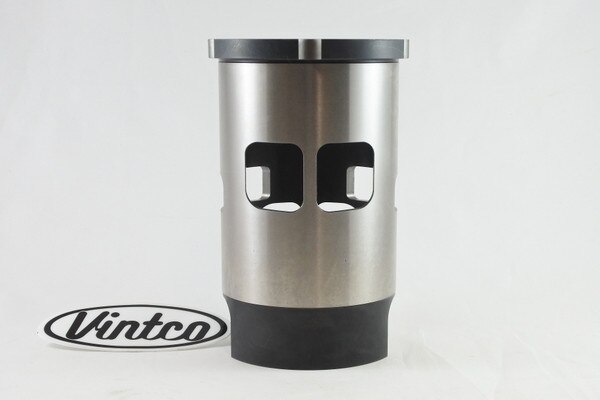

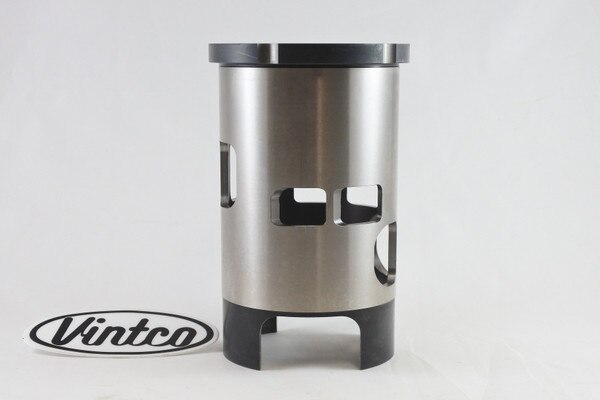

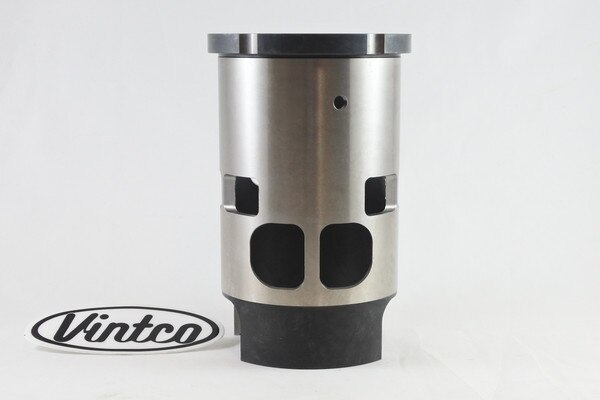

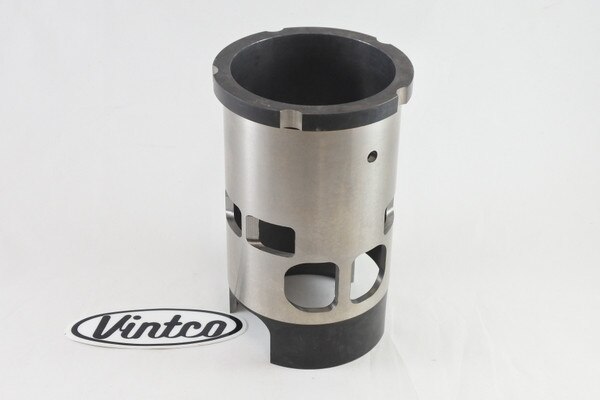

Maico 440 1978-1980 Cylinder Sleeve 82mm

1 Review
SKU: SLM03A
ID: 3534
$159.95
Quantity discounts available:
QuantityPrice

Fits 1973-77 Years But Needs Extra Machine Work.


For many vintage bikes out there it can be hard to find a replacement cylinder.  A new Cylinder Sleeve can save a vintage bike’s life.  VintCo offers high quality USA made, cast-iron Cylinder Sleeves for your vintage machine.  This Cylinder Sleeve fits your 1973-1980 Maico 440 machine.  These high quality Cylinder Sleeves are made with modern materials and manufacturing techniques to ensure an as good or better than OEM fitment and performance.  All dimensions are provided for an experienced and qualified machinist to install in your cylinder.  The ports are angled correctly so there is significantly less port matching work required than in other sleeves. This sleeve will be able to be bored and honed to your stock size VintCo piston kit. A new, high-quality, cast-iron Cylinder Sleeve can help your vintage bike run like new.  VintCo helps you keep the ride going!

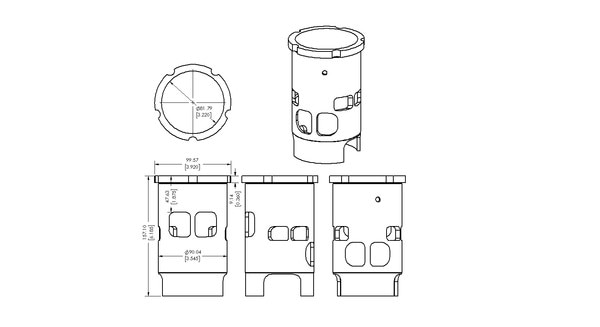

  • Made For VintCo By Advanced Sleeve
  • Piston Part # PSM03-00
  • Bore 82mm
  • Height 157mm
  • OD 90mm
  • Flange OD 99.6mm
  • Flange Height 9.1mm
  • Wall Thickness 4.1mm
  • Intake 31.7mm
  • Exhaust Port Location 47.4mm

Stock Availability: in stock

Models

  • 1973 Maico 440
  • 1974 Maico 440
  • 1975 Maico 440
  • 1976 Maico 440
  • 1977 Maico 440
  • 1978 Maico 440
  • 1979 Maico 440
  • 1980 Maico 440
