Kawasaki H2-750 1972-75 NEW Crankshaft High Performance 18mm Wrist Pin

2 Reviews
SKU: CR2010
ID: 2311
$1,283.95
Quantity discounts available:
QuantityPrice

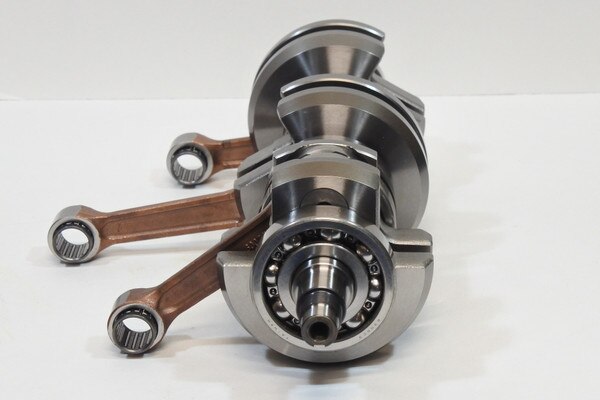

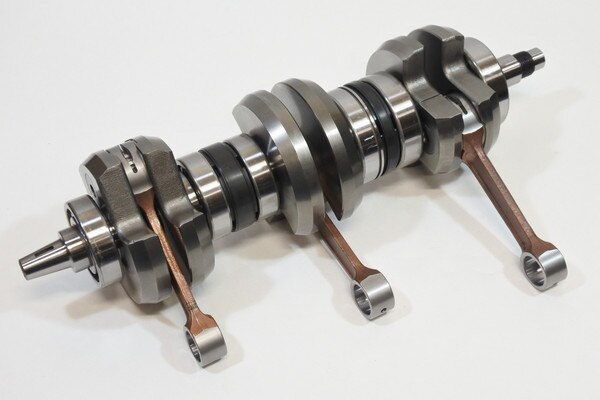

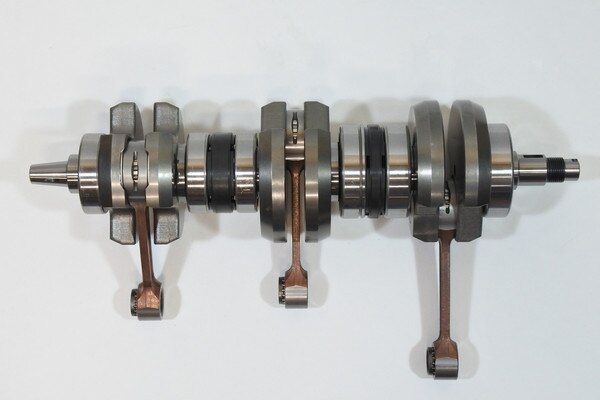

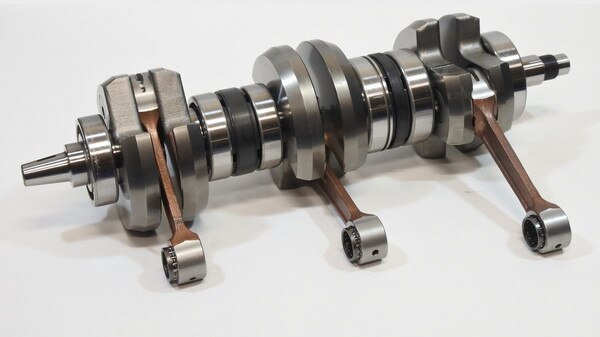

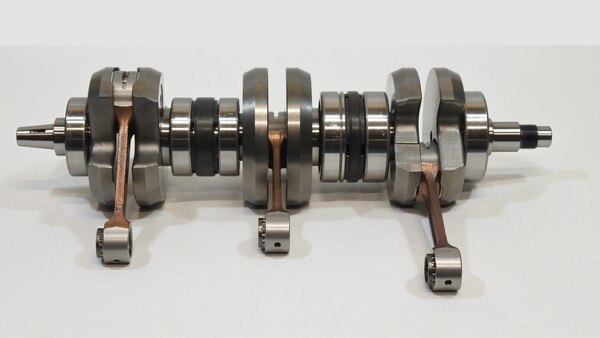

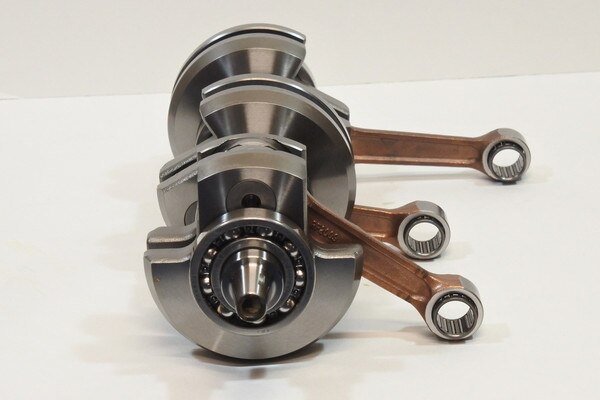

There is not a better sound than a three-cylinder two-stroke engine and VintCo has all new crankshafts completely assembled for your vintage 1972-1975 Kawasaki H2-750 that will get you back on the asphalt after your rebuild.  These crankshafts are assembled with Heavy Duty Forged Steel connecting rods with the wrist pin bearings included. The connecting rods with a more modern design and an updated wrist pin bearing.  The connecting rod has a large ventilation slot for extra cooling and lubrication. The use of special Polyetheretherketone (PEEK) coating on the lower bearing allows for superior performance.  The updated lower bearing cage has additional needle rollers for added durability. The Crankshafts come with the correct multi-lip rubber oil seals and NTN/TPI main bearings.  We pinned each crankshaft to help eliminate torque slip.  The crankshaft does not come with the troublesome oil slinger. This Crankshaft has a 18mm Wrist Pin that is considered a High Performance version, as the stock crank has a 16mm wrist pin. Custom VintCo pistons are required to run this crankshaft. If you want the standard 16mm wrist pin version that part number is CR2009.


  • Complete new crankshaft for the Kawasaki H2 750cc.
  • Available in standard (16mm) or high performance (18mm) wrist pin diameter.
  • Updated slotted connecting rod for vastly improved lubrication and cooling of rod bearings.
  • Modern flat profile rod bearing with additional needle rollers and structurally superior cage design.
  • Factory pinned to eliminate torque slip.
  • Correct multi-lip rubber oil seals.
  • NTN/TPI main bearings with large rivet cage.

Stock Availability: in stock

Models

  • 1972 Kawasaki H2-750
  • 1973 Kawasaki H2-750
  • 1974 Kawasaki H2-750
  • 1975 Kawasaki H2-750

Ratings & Reviews

2 reviews

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews

FBG h2 crank review

by -

H2 crank is awesome
<br>Straightest crank ever
<br>FBG now sells this crank
<br>No need to rebuild old oem cranks

Fantastic Product for our H2’s!

by

Very Thankful that Vintco makes these new cranks. They are top notch precision cranks capable of much more power than the original ones were ever capable of. I’ve bought two of these so far, and both were built with the same high level of quality. Definitely recommend these.
