  • Kawasaki H2 750 1972-75 HP Top End Piston Kit with 18mm Wrist Pin Bore 71.0mm Standard

Kawasaki H2 750 1972-75 HP Top End Piston Kit with 18mm Wrist Pin Bore 71.0mm Standard

(0) No Reviews yet
SKU: KTK09-00
ID: 3457
$567.86
Quantity discounts available:
QuantityPrice

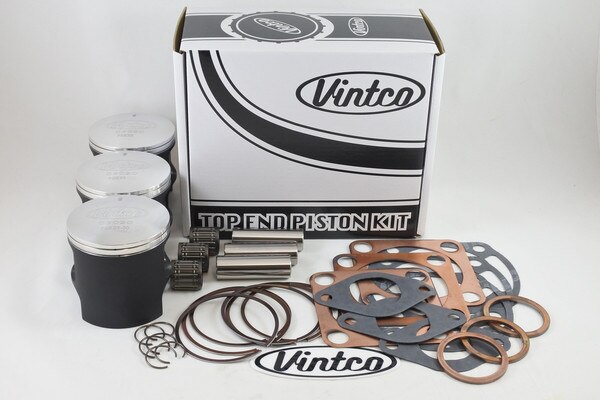

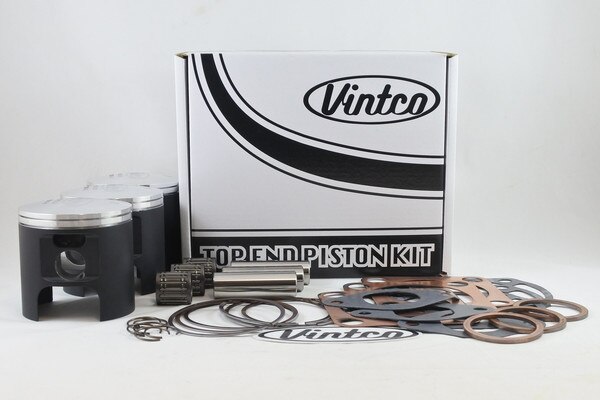

VintCo has all new Top End Piston kits to help you keep the ride going!  These complete top end kits come with everything you need to get your rebuild done easily and cost effectively.  This kit includes three high quality VintCo High Performance/Race 18mm wrist pin Piston kits (piston, rings, pin and clips), top end bearings and a full top-end gasket kit (head gasket, base gasket, intake gaskets, and exhaust gaskets for entire top end).  All components are made with modern materials and manufacturing techniques to ensure an as good or better than OEM fitment and performance. This Kawasaki H2-750 1972-75 Top End Piston Kit 71mm (Standard bore), will save you 10% compared to buying the pieces individually.  The OEM part numbers are provided to ensure an exact fitment as well. More size options are also available.


  • Kit price includes 10% discount over individual items
  • This High Performance Piston Kit is used only with our Heavy Duty High Performance Crankshaft CR2010 H2 750 1972-1975
  • Top End Kit Includes
  • Forged Piston made in Germany Mos2 coated for break in
  • 3 Pistons 70.93mm Clearance 0.07mm
  • 3 Head Gasket / OE# 11004-049
  • 3 Base Gasket / OE# 11009-028
  • 3 Intake Gasket / OE# 16062-016
  • 3 Exhaust Gasket / OE# 18067-008
  • 3 Wrist Pin Bearing / OE# 13033-027

Stock Availability: in stock

Models

  • 1972 Kawasaki H2-750
  • 1973 Kawasaki H2-750
  • 1974 Kawasaki H2-750
  • 1975 Kawasaki H2-750
