Kawasaki H1-500 1969-75 KH500 1976 Cylinder Sleeve 60mm

(0) No Reviews yet
SKU: SLK01A
ID: 3530
$179.95
Quantity discounts available:
QuantityPrice

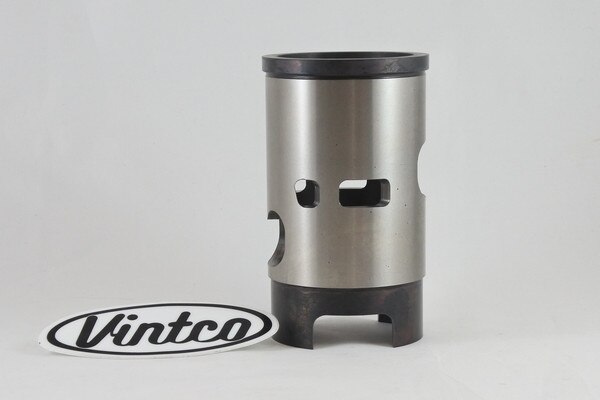

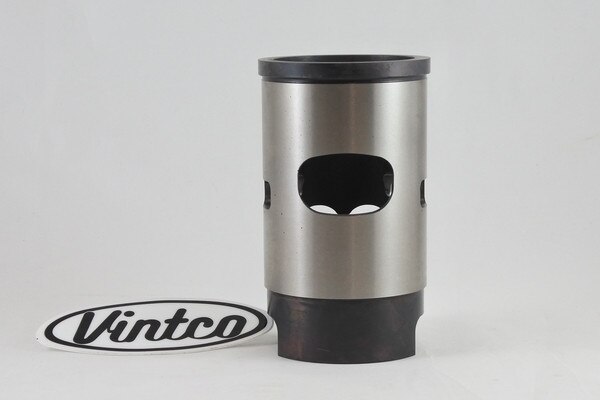

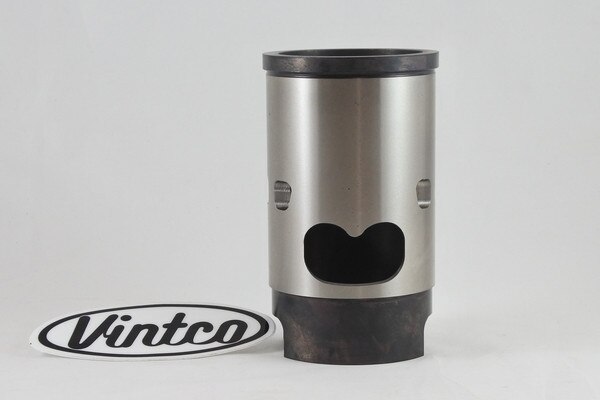

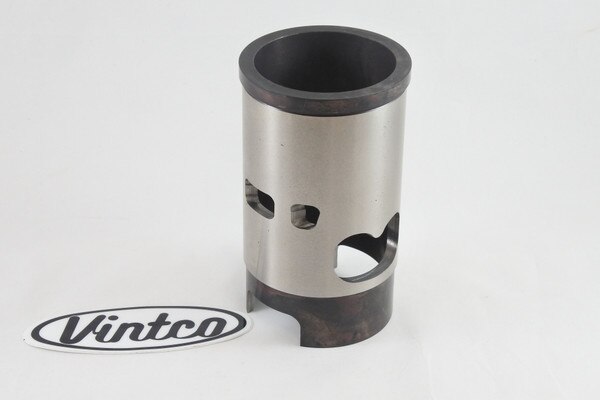

For many vintage bikes out there it can be hard to find a replacement cylinder.  A new Cylinder Sleeve can save a vintage bike’s life.  VintCo offers high quality USA made, cast-iron Cylinder Sleeves for your vintage machine.  This Cylinder Sleeve fits your 1969-1975 Kawasaki H1-500 and KH500 1976 machines (this cylinder sleeve is for one cylinder only). These high quality Cylinder Sleeves are made with modern materials and manufacturing techniques to ensure an as good or better than OEM fitment and performance.  All dimensions are provided for an experienced and qualified machinist to install in your cylinder.  The ports are angled correctly so there is significantly less port matching work required than in other sleeves. This sleeve will be able to be bored and honed to your stock size VintCo piston kit. A new, high-quality, cast-iron Cylinder Sleeve can help your vintage bike run like new.  VintCo helps you keep the ride going!

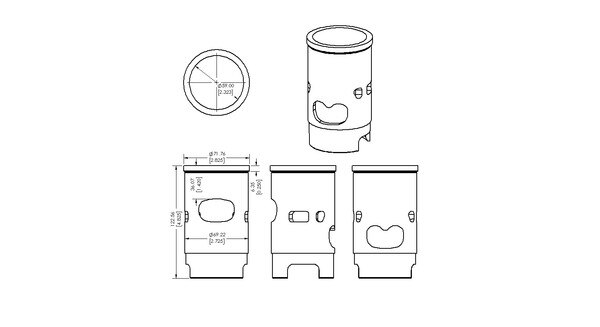

  • Made For VintCo By Advanced Sleeve
  • Piston Part # PSK01-00
  • Bore 60mm
  • Height 122.6mm
  • OD 69.2mm
  • Flange OD 71.8mm
  • Flange Height 6.4mm
  • Wall Thickness 5.1mm
  • Intake 25.3mm
  • Exhaust Port Location 36mm

Stock Availability: in stock

Models

  • 1969 Kawasaki H1-500
  • 1970 Kawasaki H1-500
  • 1971 Kawasaki H1-500
  • 1972 Kawasaki H1-500
  • 1973 Kawasaki H1-500
  • 1974 Kawasaki H1-500
  • 1975 Kawasaki H1-500
  • 1976 Kawasaki KH500
