Kawasaki H1-500 1969-73 Top End Piston Kit 61.5mm 1.5mm Over

(0) No Reviews yet
SKU: KTK01-1.5
ID: 2467
Quantity discounts available:

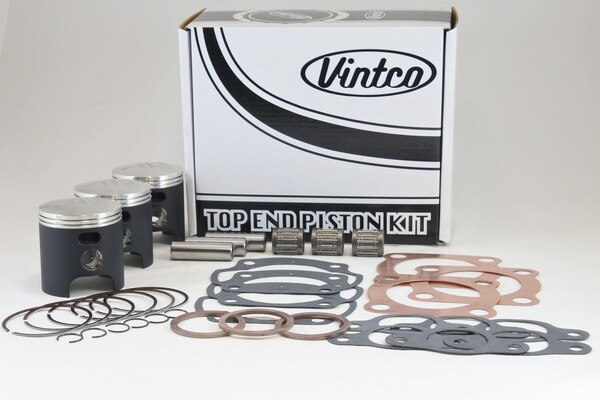

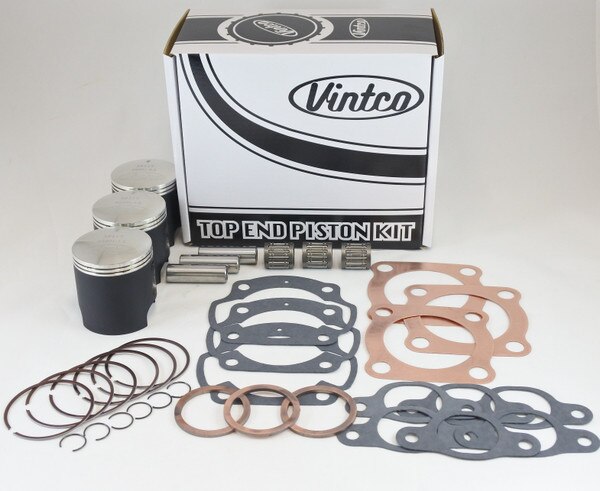

VintCo has all new Top End Piston kits to help you keep the ride going!  These complete top end kits come with everything you need to get your rebuild done easily and cost effectively.  This kit includes three high quality VintCo Piston kits (piston, rings, pin and clips), top end bearings and a full top-end gasket kit (head gasket, base gasket, intake gaskets, and exhaust gaskets for entire top end).  All components are made with modern materials and manufacturing techniques to ensure an as good or better than OEM fitment and performance. This Kawasaki H1-500 1969-73 Top End Piston Kit 61.5mm (+1.5mm over), will save you 10% compared to buying the pieces individually.  The OEM part numbers are provided to ensure an exact fitment as well. More size options are also available.

  • Kit price includes 10% discount over individual items
  • Top End Kit Includes
  • Forged Piston made in Germany Mos2 coated for break in

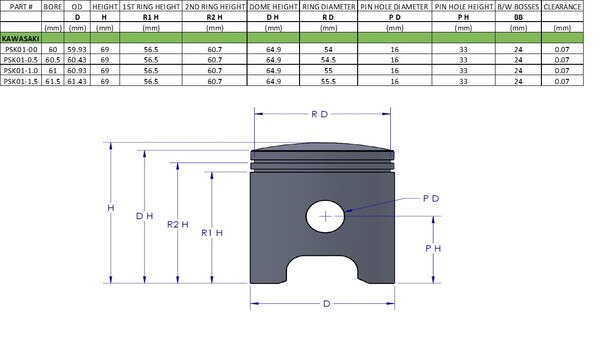

  • 3 Pistons 1.5mm Oversize 61.43mm Clearance 0.07mm
  • 3 Head Gasket / OE# 11004-048
  • 3 Base Gasket / OE# 11009-019
  • 6 Intake Gasket / OE# 16062-011
  • 3 Exhaust Gasket / OE# 18067-008
  • 3 Wrist Pin Bearing / OE# 93310-216E1-00

Stock Availability: in stock


  • 1969 Kawasaki H1-500
  • 1970 Kawasaki H1-500
  • 1971 Kawasaki H1-500
  • 1972 Kawasaki H1-500
  • 1973 Kawasaki H1-500
