  • Husqvarna CR360 1976 CR360GP 1975 WR360 1976-77 360Auto 1976-77 Cylinder Sleeve 82mm

Husqvarna CR360 1976 CR360GP 1975 WR360 1976-77 360Auto 1976-77 Cylinder Sleeve 82mm

1 Review
ID: 3526
Quantity discounts available:

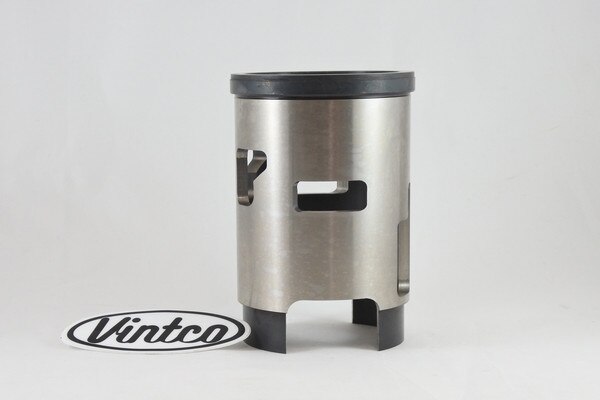

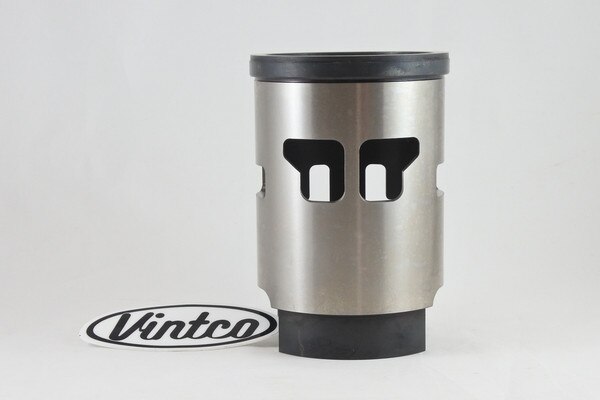

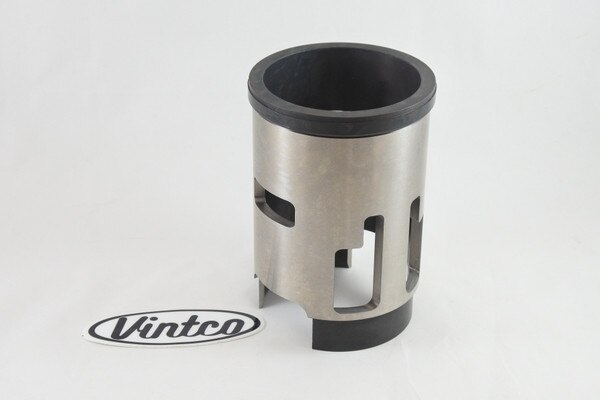

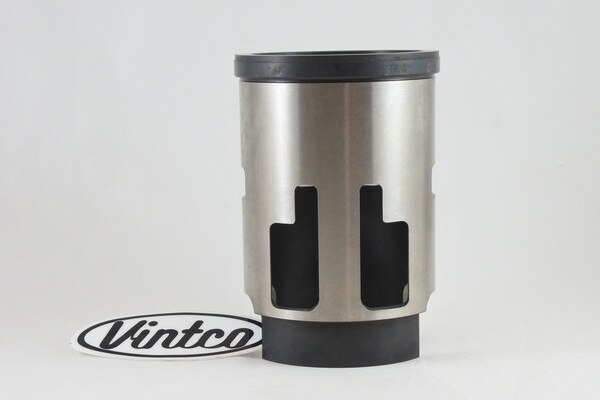

For many vintage bikes out there it can be hard to find a replacement cylinder.  A new Cylinder Sleeve can save a vintage bike’s life.  VintCo offers high quality USA made, cast-iron Cylinder Sleeves for your vintage machine.  This Cylinder Sleeve fits your Husqvarna 1976 CR360, 1975 CR360GP, 1976-77 WR360 and 1976-77 360Auto machines.  These high quality Cylinder Sleeves are made with modern materials and manufacturing techniques to ensure an as good or better than OEM fitment and performance.  All dimensions are provided for an experienced and qualified machinist to install in your cylinder.  The ports are angled correctly so there is significantly less port matching work required than in other sleeves. This sleeve will be able to be bored and honed to your stock size VintCo piston kit. A new, high-quality, cast-iron Cylinder Sleeve can help your vintage bike run like new.  VintCo helps you keep the ride going!

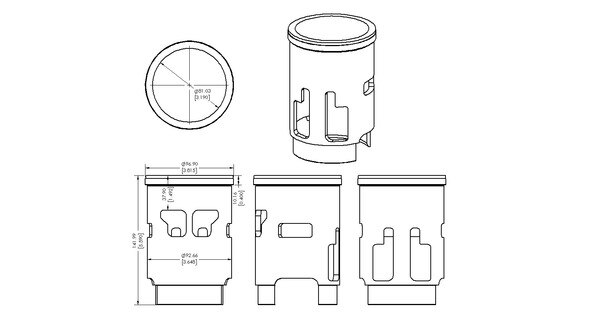

  • Made For VintCo By Advanced Sleeve
  • Piston Part # PSU05-00
  • Bore 82mm
  • Height 142mm
  • OD 92.6mm
  • Flange OD 96.9mm
  • Flange Height 10.2mm
  • Wall Thickness 5.8m
  • Intake 58mm
  • Exhaust Port Location 37.9mm

Stock Availability: out of stock

Email me when stock is available


  • 1975 Husqvarna CR360 GP
  • 1976 Husqvarna 360 Auto
  • 1976 Husqvarna CR360
  • 1976 Husqvarna WR360
  • 1977 Husqvarna 360 Auto
  • 1977 Husqvarna WR360
