Husqvarna CR125 WR125 1972-73 SC125 1974 Cylinder Sleeve 55mm

(0) No Reviews yet
SKU: SLU06A
ID: 3527
$139.95
Quantity discounts available:
QuantityPrice

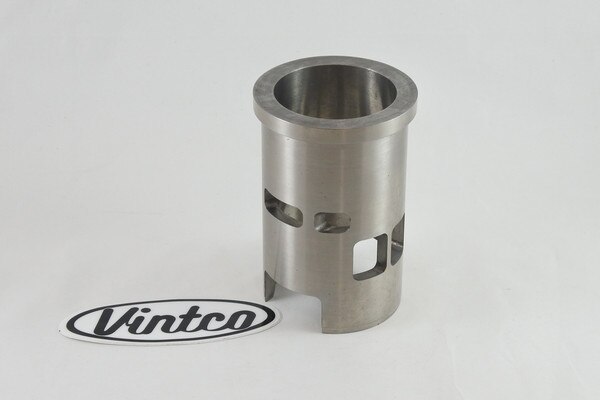

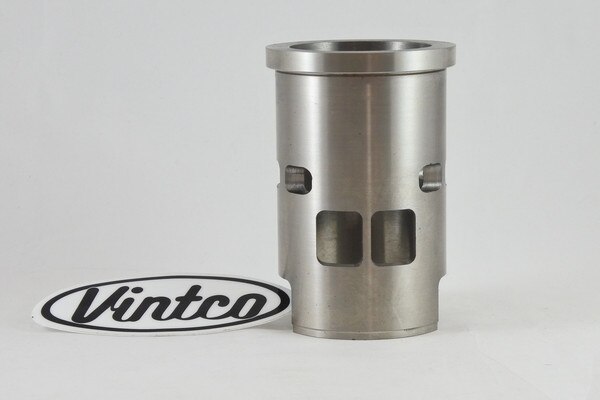

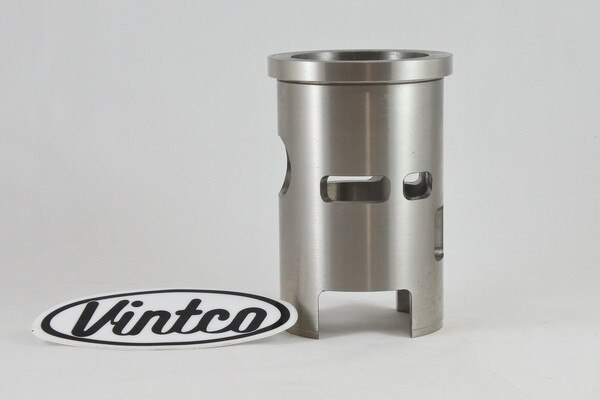

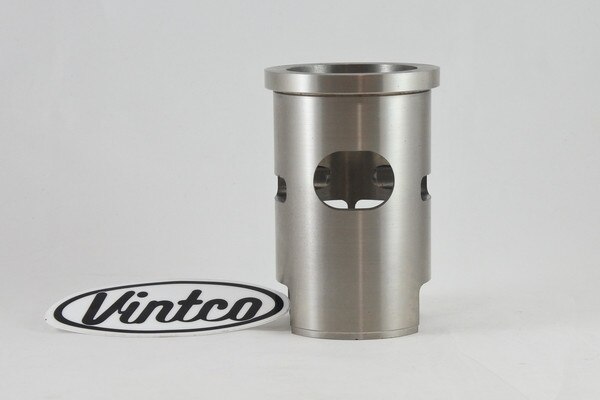

For many vintage bikes out there it can be hard to find a replacement cylinder.  A new Cylinder Sleeve can save a vintage bike’s life.  VintCo offers high quality USA made, cast-iron Cylinder Sleeves for your vintage machine.  This Cylinder Sleeve fits your Husqvarna 1972-73 CR125, WR125 and 1974 SC125 machines.  These high quality Cylinder Sleeves are made with modern materials and manufacturing techniques to ensure an as good or better than OEM fitment and performance.  All dimensions are provided for an experienced and qualified machinist to install in your cylinder.  The ports are angled correctly so there is significantly less port matching work required than in other sleeves. This sleeve will be able to be bored and honed to your stock size VintCo piston kit. A new, high-quality, cast-iron Cylinder Sleeve can help your vintage bike run like new.  VintCo helps you keep the ride going!

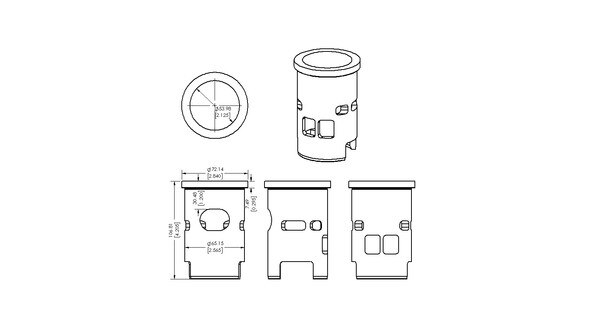

  • Made For VintCo By Advanced Sleeve
  • Piston Part # PSU06-00
  • Bore 55mm
  • Height 106.8mm
  • OD 65.2mm
  • Flange OD 72.1mm
  • Flange Height 7.5mm
  • Wall Thickness 5.6mm
  • Intake 20.7mm
  • Exhaust Port Location 30.4mm

Stock Availability: in stock

Models

  • 1972 Husqvarna CR125
  • 1972 Husqvarna WR125
  • 1973 Husqvarna CR125
  • 1973 Husqvarna WR125
  • 1974 Husqvarna SC125
