Honda CR250 1973-74 Cylinder Sleeve 70mm

(0) No Reviews yet
ID: 3520
Quantity discounts available:

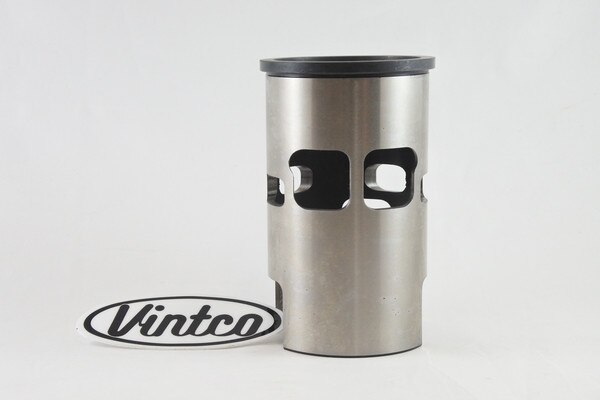

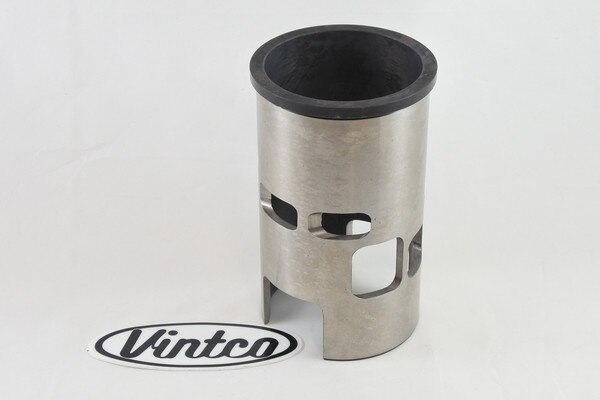

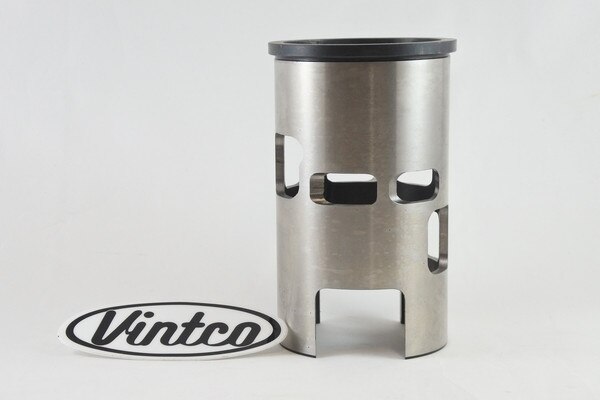

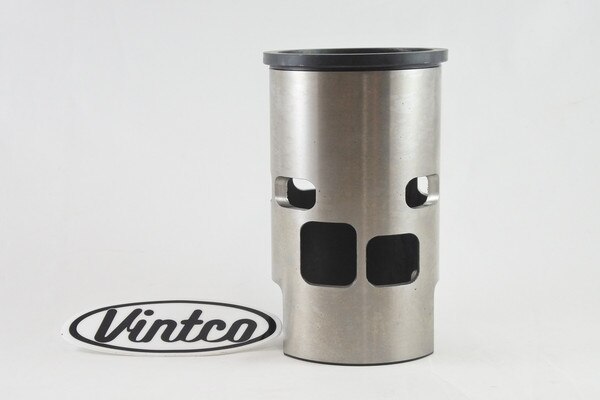

For many vintage bikes out there it can be hard to find a replacement cylinder.  A new Cylinder Sleeve can save a vintage bike’s life.  VintCo offers high quality USA made, cast-iron Cylinder Sleeves for your vintage machine.  This Cylinder Sleeve fits your 1973-74 Honda CR250 Elsinore machine.  These high quality Cylinder Sleeves are made with modern materials and manufacturing techniques to ensure an as good or better than OEM fitment and performance.  All dimensions are provided for an experienced and qualified machinist to install in your cylinder.  The ports are angled correctly so there is significantly less port matching work required than in other sleeves. This sleeve will be able to be bored and honed to your stock size VintCo piston kit. A new, high-quality, cast-iron Cylinder Sleeve can help your vintage bike run like new.  VintCo helps you keep the ride going!

  • Made For VintCo By Advanced Sleeve
  • Piston Part # PSH04-00

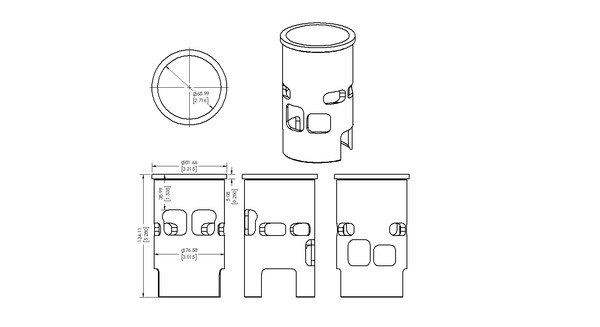

  • Bore 70mm
  • Height 134.1mm
  • OD 76.6mm
  • Flange OD 81.7mm
  • Flange Height 5.1mm
  • Wall Thickness 3.8mm
  • Intake 28.3mm
  • Exhaust Port Location 38.8mm

Stock Availability: in stock


  • 1973 Honda CR250
  • 1974 Honda CR250
