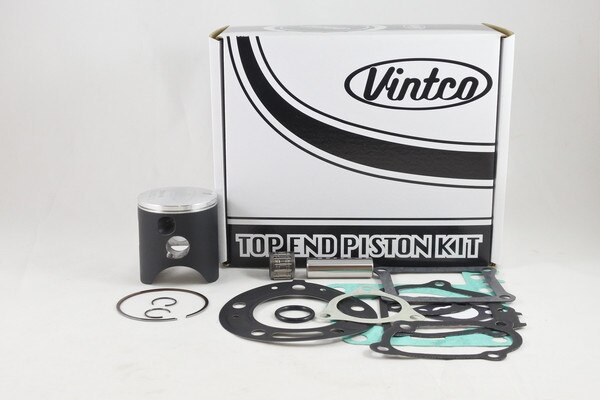

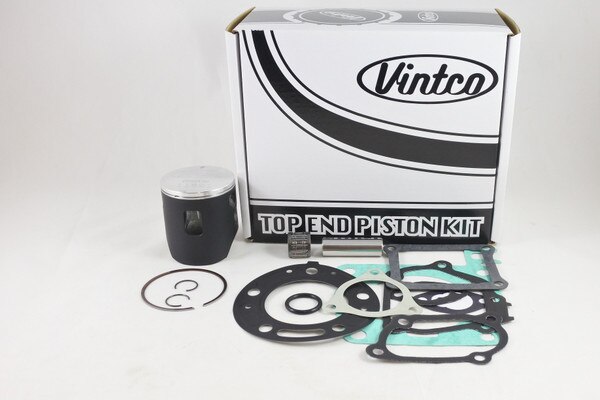

VintCo has all new Top End Piston kits to help you keep the ride going! These complete top end kits come with everything you need to get your rebuild done easily. This kit includes a high quality VintCo Piston kit (piston, rings, pin and clips), top end bearing and a full top-end gasket kit (head gasket, base gasket, intake gasket, and exhaust gasket). All components are made with modern materials and manufacturing techniques to ensure an as good or better than OEM fitment and performance. This 1990-1991 Honda CR125 Top End Piston Kit 54mm Standard, will save you 10% compared to buying the pieces individually. The OEM part numbers are provided to ensure an exact fitment as well. More size options are also available.
- Kit Price Includes 10% discount over individual items
- Top End Kit Includes:
- Forged piston made in Germany MOS2 coated for break in
- Piston 53.96mm Clearance 0.06mm
- Head Gasket / OE# 12251-KZ4-701
- Base Gasket / OE# 12191-KZ4-620
- Water Hose O-ring / OE# 91312-KE7-003
- Intake Gasket / OE# 14132-KY4-970
- Exhaust Pipe Gasket / OE# 18291-KZ4-700
- Right Powervalve Cover Gasket / OE# 12108-KZ4-620
- Left Powervalve Cover Gasket / OE# 12109-KZ4-620
- Upper Powervalve Cover Gasket / OE# 12112-KZ4-620
- Wrist Pin Bearing
